Accurate rivet length calculation is essential for secure, long-lasting assembly in metalworking, construction, and manufacturing. To get better results, you need to master rivet measurements, understand blind rivet dimensions, and follow the correct rivet length formula.
How Are Rivets Measured?

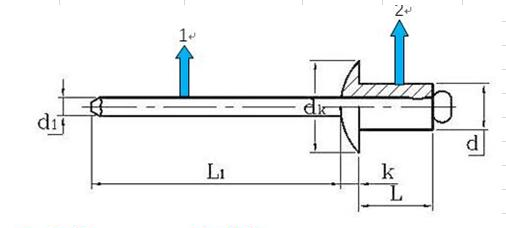

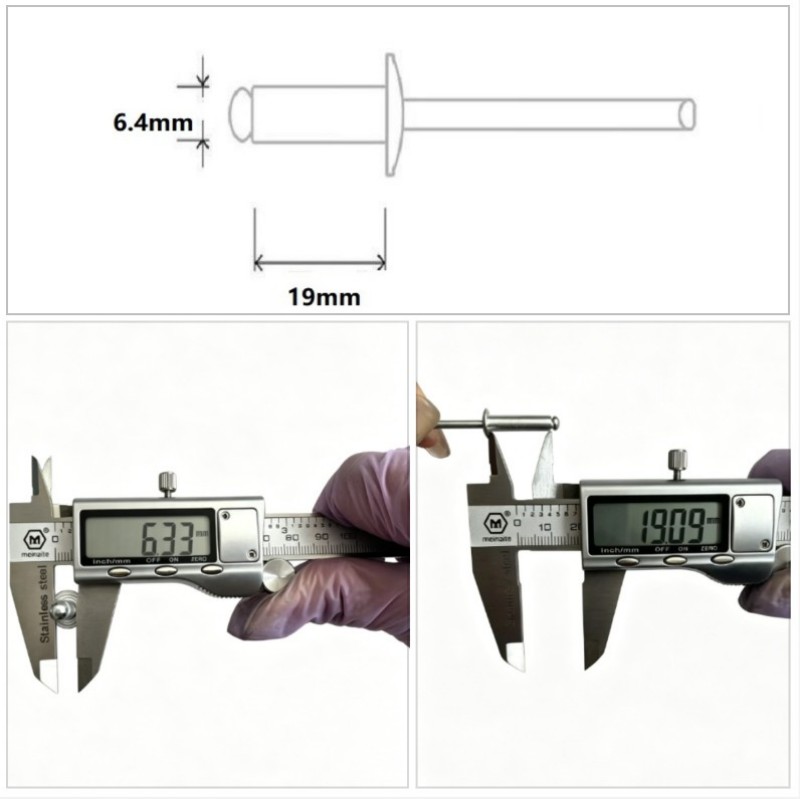

How are rivets measured and how to measure rivet correctly. Standard rivet measurements focus on two core parts: the rivet shank diameter and the overall rivet length.
For blind fasteners,, blind rivet measurements follow industry norms, where length is measured from under the rivet dome head to the end of the shank. If you are new to sizing, check a rivet dimensions chart or rivet size chart to learn how to measure rivet size. These charts list standard diameters, lengths, and compatible application ranges for quick reference.

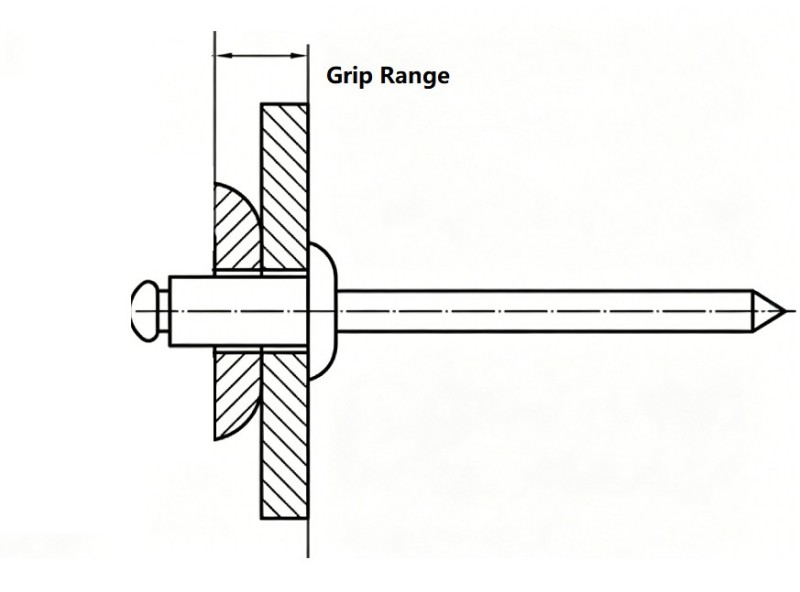

Rivet Grip Length vs Rivet Grip Range
Before you calculate rivet length, you must understand rivet grip length and rivet grip range.
- Rivet grip length: The exact total thickness of the materials being joined.
- Rivet grip range: The minimum and maximum material thickness a single rivet can fasten.
Always match your material thickness to the listed rivet grip range. Using a rivet outside its grip range ruins the joint integrity, no matter how precise your rivet length calculation is. This rule applies to all standard blind rivet dimensions and general rivet measurements.
Rivet Length Formula for Standard Calculation
The reliable rivet length formula for most applications is straightforward:Total Rivet Length = Combined Material Thickness + Recommended Protrusion
The extra protrusion allows the rivet shank to deform properly and form a tight lock after installation.
Use a Rivet Length Calculator for Fast Results
If you want to save time and avoid manual math, use a rivet length calculator or rivet size calculator. Simply input material thickness, rivet shank diameter, and head type, and the tool instantly gives the recommended rivet length.
These online tools eliminate sizing errors, making rivet length calculation fast and accurate for batch orders and daily installation tasks. Pair the calculator with a rivet size chart and rivet dimensions chart, and you will never get the wrong size again.
YUKERIVET TIPS:
Mastering how to measure rivet size, following the rivet length formula, and using professional rivet measurements are the keys to proper installation. Always confirm blind rivet dimensions, check the rivet grip range, and use a rivet length calculator to simplify all your rivet length calculation work.
