Rivets and riveting serve as essential fastening components and fabrication techniques across modern manufacturing and structural construction.
1. Basic Definition: What Are Rivets and Riveting
1.1 What Are Rivets?
A rivet is a standard permanent fastener.
1.2 What Is Riveting?
Riveting is a practical assembly process that uses specialized tools to deform and set rivets, creating permanent joints between separate workpieces.
2. Main Working Principle of Riveting
Riveting works through plastic deformation fastening. This sets it apart from threaded fasteners, which rely solely on friction to stay secured. Rivets expand under compression, filling every gap inside drilled holes and creating a stable double-head locking mechanism that holds parts firmly together.
3. Common Types of Rivets and Their Characteristics
Industrial development has spawned a wide range of rivet styles tailored to unique working conditions and load requirements. Each variant features distinct structural traits and targeted use cases, with the following types being the most common in commercial and industrial manufacturing.
3.1 Solid Rivets
Solid rivets are the original, most robust rivet style. It provides exceptional structural strength, outstanding shear resistance and long service life, making them the top choice for heavy-load structural joints.
Solid rivets are set either by manual hammering or dedicated industrial riveting machines. They are widely implemented in heavy engineering infrastructure, including bridge steel frames, ship hulls, boiler casings and railway equipment.
3.2 Blind Rivets (Pop Rivets)
Blind rivets, frequently referred to as pop rivets, dominate light industrial assembly work. Their biggest practical advantage is single-sided installation: workers can complete full fastening from only one side of the workpiece, with no need for backside access or support.
A typical blind rivet consists of a rivt body and a central metal mandrel.
3.3 Countersunk Rivets

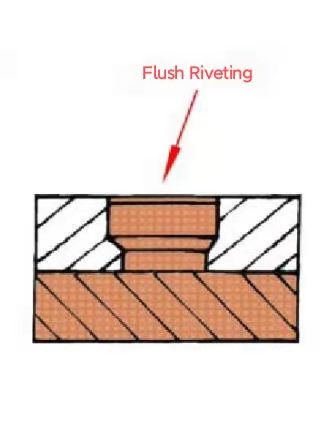

Countersunk rivets, also known as flush rivets. After installation, the entire head sits flush inside a countersunk workpiece hole, creating a completely flat, protrusion-free surface.
3.4 Semi-Tubular & Split Rivets
Semi-tubular rivets have a solid head and partially hollow tail,
4. Key Advantages of Riveting Technology
When compared to welding, bolted connections and adhesive bonding, riveting offers distinct practical and cost benefits. These unique strengths have kept the technique relevant and widely adopted in modern manufacturing, despite ongoing technological advancements.
4.1 High Structural Stability and Anti-Loosening Performance
Riveted joints form permanent, locked connections that resist loosening from long-term vibration, mechanical impact and temperature fluctuations. Unlike bolted joints, which commonly loosen over time due to thread wear and vibration, riveted assemblies deliver superior fatigue resistance, sustaining stable performance for mechanical systems and building structures over decades of use.
4.2 No Damage to Workpiece Materials
Riveting is a purely physical forming process with no high-temperature heating involved. It avoids the burn marks, thermal deformation and material property degradation that often occur with welding. Workpiece surface coatings and original material characteristics remain intact, making riveting ideal for precision components, thin metal sheets and heat-sensitive specialty alloys.
4.3 Simple Operation and Low Comprehensive Cost
The riveting process is simple to execute, requiring only basic equipment and minimal operator training. Fast installation speeds drastically boost batch assembly efficiency. Additionally, rivets are low-cost, long-lasting and virtually maintenance-free after installation. For mass production, riveting delivers far better overall cost performance than bolting or welding processes.
4.4 Strong Adaptability of Materials
Riveting accommodates joining of dissimilar materials, including metal-to-metal, metal-to-plastic and metal-to-leather combinations. This solves common bonding challenges that welding cannot address, offering unmatched versatility across diverse manufacturing scenarios.
5. Main Industrial Applications of Riveting
5.1 Aerospace and Transportation
Aerospace and transit industries demand lightweight yet ultra-strong structural solutions with precise aerodynamic performance.
5.2 Construction and Structural Engineering
Major structural engineering projects, including bridge frameworks, steel building construction, tower crane assembly and boiler fabrication, use high-strength solid rivets and hot riveting techniques to join heavy steel components.
5.3 Light Industry and Hardware Manufacturing
Light manufacturing and hardware industries extensively use blind rivets, semi-tubular rivets and split rivets for assembling appliance casings, hand tools, furniture hardware and leather goods. These fasteners deliver fast, cost-effective fastening for low-load civilian products, perfectly matching lightweight assembly requirements.
5.4 Mechanical Equipment Manufacturing
Mechanical equipment manufacturers widely adopt riveting for securing structural brackets, transmission parts and core assembly components.
